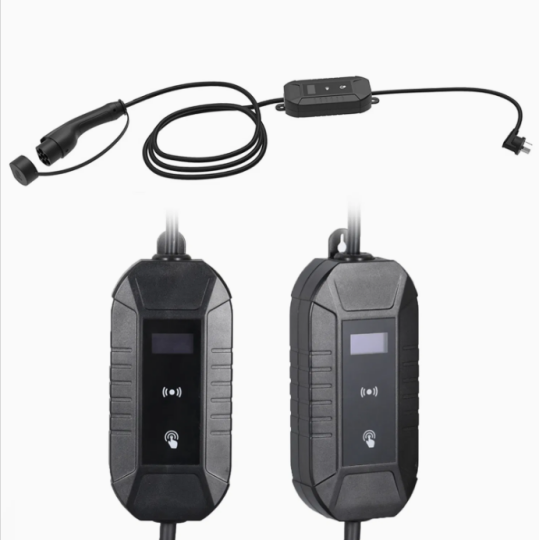

Best 16A Adjustable 3.5kw Portable Electric Car Charger
★★★★★
US$58.00-128.00 1 Piece (MOQ)
-
Colors:
Category:
Charger
Model NO | M2C03 |
Number of Charging Interfaces | One Pile with One Charge |
Color | Whte/Black/Green |
After-Sales Service | Online Technology Guidance |
Certification | CE CQC |
Transport Package | 1 Carton Inner Box |
Trademark | BHZD |
HS Code | 8504409999 |
Location | Private Use |
Start Mode | RFID Card |
Weight | 2kg |
Type | Slow EV Charging Station |
Warranty | 12 Months |
Specification | 220mm*94mm*72mm |
Origin | China |
Production Capacity | 2000/Month |
Share:
Description:
（1）Packaging & Delivery
Package Size | 40.00cm*40.00cm*10.00cm |
Package Gross Weight | 9.000kg |
（2）Product Description
Product number | C16A | A16A | U16A | |
Electrical Specifications | ||||
AC input | nput voltage range | Single phase 220~240VAC | Single phase 110VAC | Single phase 220VAC |
Connection wiring method | L,N,PE(16Aplug) | NEMA5-15P | NEMA5-15P | |
Maximum input current | 16A | |||
frequency | 50Hz | 60Hz | 50Hz | |
AC output | Maximum output current | 5A,8A,10A,13A,16A | ||
Leakage current action value | ≤38mA | |||
Use environment | ||||
Operating temperature | -25℃-55℃ | |||
humidity | Maximum 95%(relative humidity) | |||
altitude | ≤2000m | |||
IP rating | IP55 | |||
cooling method | Natural cooling | |||
Exterior structure | ||||
Size(L*W*H) | 220*94*72mm | |||
shell material | ABS+PC | |||
net weight | ≤2KG(with charging gun) | |||
Output line length | 5M | 7M | 7M | |
protection mechanism | ||||
Input test | Low voltage,over voltage,lightning protection,ground fault | |||
Output test | Overcurrent,control signal fault detection protection,leakage protection | |||
internal | Over temperature,relay contact fault detection and protection | |||
Certification specifications | ||||
Certification | CQC | UL | CE | |
Charging interface | GB/T 20234.2 | SAEJ1772,Type 1 | IEC62196-2,Type 2 | |
Status function | ||||
Status Display | 1.3 inch OLED display | |||
（3）Application

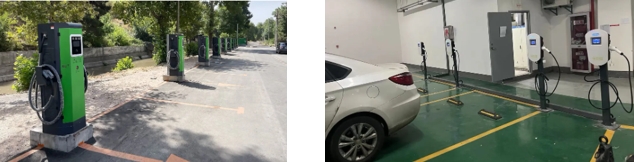

The application of portable ev charger
1. Installation of charging piles for private users
2. Construction of charging stations in underground parking garages
3. Outdoor charging station
4. Charging pile project of leisure square
5. Construction of large-scale public station charging station cooperating with State Grid
